GALVANIZED STEEL BOAT LIFT

8,000 LBS Capacity

Free-standing hydraulic lift re-charged with solar power
Touch-of-a-button seamless launch
Steel construction – nothing is stronger
Available with 53″ or 65” or 72″ of vertical lift

Request a Quote

Gallery

Tech Specs

TECHNICAL SPECIFICATIONS

8k53 Specifications

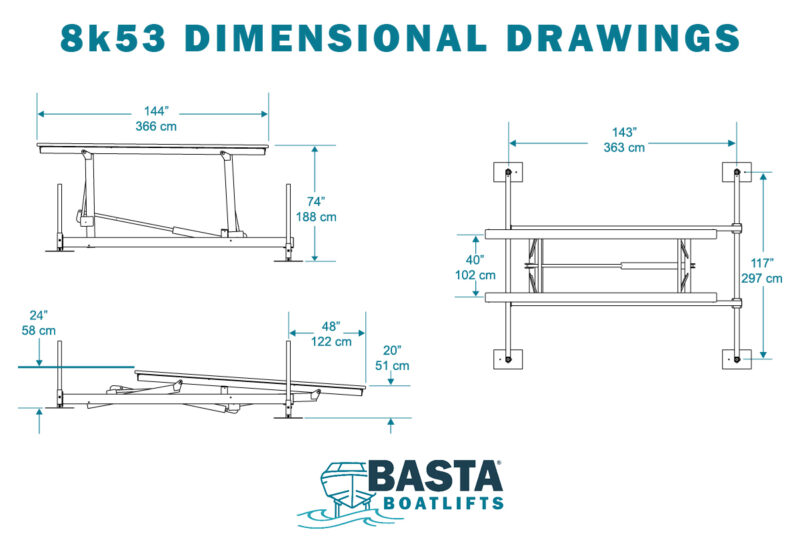

*See Gallery for Dimensional Drawings

Lifting Capacity is the maximum weight the boat lift can lift. To calculate add total boat weight and all contents at time of lifting (fuel, gear, fresh water tank…)

Lift Capacity

8,000 LBS

Vertical Lift is measured at the aft end of the bunk rails from the fully lowered position to the fully raised position.

Vertical Lift

53″

Visit the Basta Support page for instructions on how to calculate the required water depth to load your boat onto the lift. Contact Basta for additional methods to reduce minimum water depth.

Minimum Water Depth

24″

This is the most common leg length, but other lengths are available to fit your specific needs.

Standard Leg Length

48″

Frame Weight

1,169 LBS

Ship Weight

1,700 LBS

Mono-Crystal Solar Charger

12 Watt

Remote Control Fobs

2

Stainless Steel Cylinder

1

Standard Hose Length

27′

Submerged Hose Ends

Stainless

Connecting Hardware

Stainless

8k65 Specifications

*See Gallery for Dimensional Drawings

Lifting Capacity is the maximum weight the boat lift can lift. To calculate add total boat weight and all contents at time of lifting (fuel, gear, fresh water tank…)

Lift Capacity

8,000 LBS

Vertical Lift is measured at the aft end of the bunk rails from the fully lowered position to the fully raised position.

Vertical Lift

53″

Visit the Basta Support page for instructions on how to calculate the required water depth to load your boat onto the lift. Contact Basta for additional methods to reduce minimum water depth.

Minimum Water Depth

25″

This is the most common leg length, but other lengths are available to fit your specific needs.

Standard Leg Length

48″

Frame Weight

1,212 LBS

Ship Weight

1,743 LBS

Mono-Crystal Solar Charger

12 Watt

Remote Control Fobs

2

Cylinders

1

Standard Hose Length

27′

Submerged Hose Ends

Stainless

Connecting Hardware

Stainless

8k72 Specifications

*See Gallery for Dimensional Drawings

Lifting Capacity is the maximum weight the boat lift can lift. To calculate add total boat weight and all contents at time of lifting (fuel, gear, fresh water tank…)

Lift Capacity

8,000 LBS

Vertical Lift is measured at the aft end of the bunk rails from the fully lowered position to the fully raised position.

Vertical Lift

72″

Visit the Basta Support page for instructions on how to calculate the required water depth to load your boat onto the lift. Contact Basta for additional methods to reduce minimum water depth.

Minimum Water Depth

26″

This is the most common leg length, but other lengths are available to fit your specific needs.

Standard Leg Length

48″

Frame Weight

1,242 LBS

Ship Weight

1,773 LBS

Mono-Crystal Solar Charger

12 Watt

Remote Control Fobs

2

Cylinders

1

Standard Hose Length

27′

Submerged Hose Ends

Stainless

Connecting Hardware

Stainless

Manual

THE UNRIVALED STRENGTH OF STEEL –

Basta Boatlifts is the ONLY manufacturer to build hydraulic boat lifts out of galvanized steel. Steel offers unmatched strength and rigidity, essential qualities in areas known for rough water and severe weather patterns.

HARDENED CHROME PLATED STAINLESS STEEL CYLINDER –

Our boat lifts are powered by the finest hydraulic cylinders on the market. Made from the ultimate corrosion-resistant materials, our single cylinder pushes the full length of the frame creating the smoothest boat launching experience.

HYDRAULIC POWER UNIT WITH SOLAR CHARGING PANEL –

Our strong and attractive white fiberglass dock box houses a single battery. With a mounted 12-watt solar charger, no shore power is necessary to power your boat lift!

WIRELESS CONTROLL –

Launch and retrieve your vessel seamlessly with a touch of a button.

BEAUTIFUL ACCESSORIES –

Take your docking experience up another level by adding accessories to your lift. One or two pairs of centering guides with cozy foam covers, guiding and cushioning your boat on its arrival and departure.

Our 2,000 lumen underwater light is a customer favorite, adding visibility to your dock when approaching after dusk.

Balanced Load H-Frame Featuring Over-Center Gravity Locking Position
Attractively-Styled Fiberglass dock box
12-Watt Solar Panel
Two Wireless Remote Key Fobs

Manual Control Switched in Power Box
Duplex-Bonded Synthetic Hydraulic Hoses
Biodegradable Hydraulic Fluid
Stainless steel cylinder fittings and hose ends
Stainless Steel Hardware

LEARN MORE ABOUT BASTA’S HYDRAULIC GALVANIZED STEEL BOAT LIFTS

“big boats, bigger lifting capacity”

Boats are getting heavier, and the required lifting capacity has slowly increased over the years as a result. Once loaded with fuel and gear, many modern runabouts and wake boats require a significant lifting capacity. Enter scene, Basta’s 8,000 LB Galvanized Steel Boat Lift!

With its galvanized steel construction, this heavy lifter is a fan favorite. The Basta 8,000 LB capacity Galvanize Steel Boat Lift is a popular choice for the Cobalt R5, Nautique G23, and many other large boat models.
