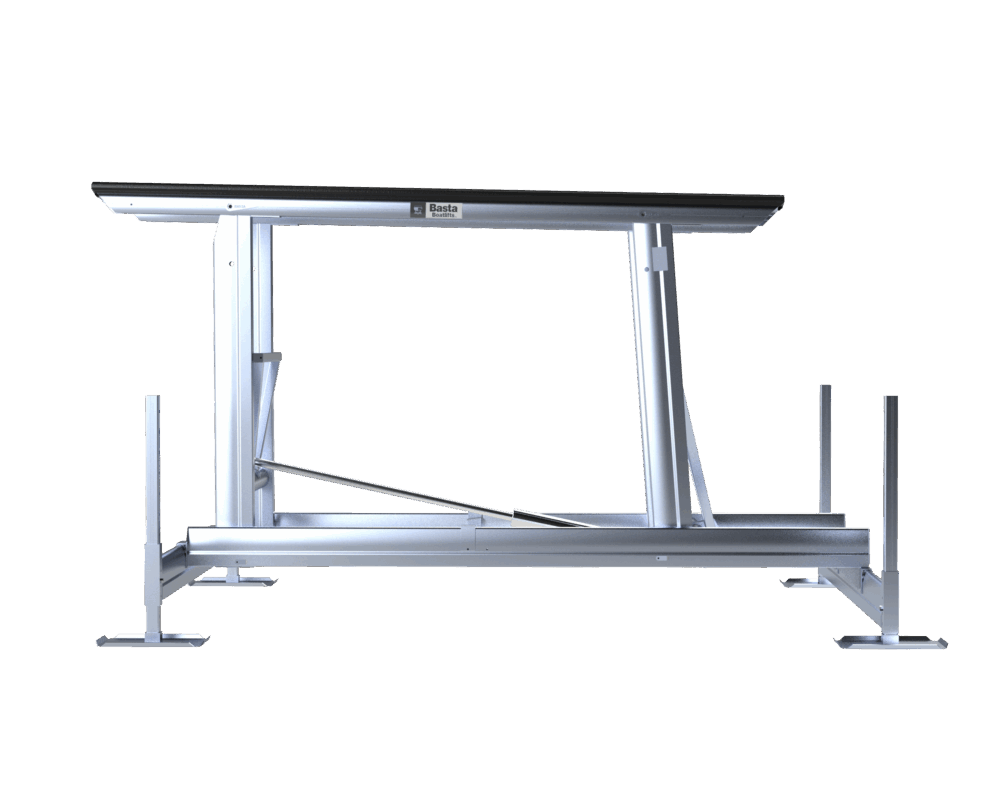

ALUMINUM BOAT LIFT

8,000 LBS Capacity

Free-standing hydraulic lift re-charged with solar power
Touch-of-a-button seamless launch
Custom styled aluminum extrusions
A hull’s best protection: Super Cush™ Rubber Bunks
Stainless Steel Hydraulic Cylinder and Hardware
Vertical Lift Customizable – Cut to 56″ or 65″

Request a Quote

Gallery

Tech Specs

TECHNICAL SPECIFICATIONS

8,000 LB Aluminum Lift Specifications

*Contact Basta Boatlifts for additional specifications

Lifting Capacity is the maximum weight the boat lift can lift. To calculate add total boat weight and all contents at time of lifting (fuel, gear, fresh water tank…)

Lift Capacity

8,000 LBS

Vertical Lift is measured at the aft end of the bunk rails from the fully lowered position to the fully raised position. *Lift can be adjusted from 65″ to 56″ which in turns increases capacity to 9,500 LB.

Vertical Lift

56″* or 65″

Visit the Basta Support page for instructions on how to calculate the required water depth to load your boat onto the lift. Contact Basta for additional methods to reduce minimum water depth.

Minimum Water Depth

27″

Frame Width

120″

Frame Length

143″

Solar Charger

Mono Crystalline

Remote Control Fobs

2

Cylinders

1

Standard Hose Length

27′

Submerged Hose Ends

Stainless

Connecting Hardware

Stainless

Manual

HARDENED CHROME PLATED STAINLESS STEEL CYLINDER –

Our boat lifts are powered by the finest hydraulic cylinders on the market. Made from the ultimate corrosion-resistant materials, our single cylinder pushes the full length of the frame creating the smoothest boat launching experience.

HYDRAULIC POWER UNIT WITH SOLAR CHARGING PANEL –

Our strong and attractive white fiberglass dock box houses a single battery. With a mounted 12-watt solar charger, no shore power is necessary to power your boat lift!

WIRELESS CONTROL –

Launch and return seamlessly with a touch of a button.

SUPERCUSH™ RUBBER BUNKS –

The industry’s thickest rubber bunks provide the best support imaginable to your boat’s running surface.

BEAUTIFUL ACCESSORIES –

Take your docking experience up another level by adding accessories to your lift. One or two pairs of centering guides with cozy foam covers, guiding and cushioning your boat on its arrival and departure.

Our 2,000 lumen underwater light is a customer favorite, adding visibility to your dock when approaching after dusk.

Balanced Load H-Frame Featuring Over-Center Gravity Locking Position
Long-Life environmentally Friendly hydraulic fluid
Attractively-Styled Fiberglass dock box
12-Watt Solar Panel
Two Wireless Remote Key Fobs

Reinforced Bunk Rails
Manual Control Switched in Power Box
Duplex-Bonded Synthetic Hydraulic Hoses
Stainless steel cylinder fittings and hose ends
Stainless Steel Hardware

LEARN MORE ABOUT BASTA’S HYDRAULIC ALUMINUM BOAT LIFTS

“THE PRINCE OF ALUMINUM LIFTS”

A trailblazer in boat lifting technology. With a sturdy aluminum foundation, this lift redefines expectations for handling heavy boats. Versatile and ready for any challenge, it effortlessly elevates a range of watercraft, from wake boats to cruisers.
